09672374704 | Harting

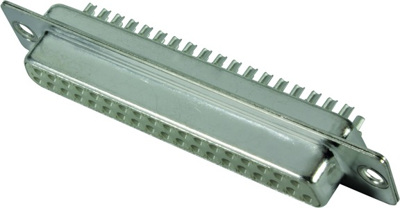

D-Sub socket, 37 pole, standard, equipped, straight, solder cup, 09672374704
Unit Price (€ / pc.)
5.2717 € *
Available: 34 pcs.
Total Price:
5.27 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2717 €
10 pcs.
4.8433 €
50 pcs.
4.4149 €
100 pcs.
3.9627 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 09672374704, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Metal shell: Plated steel
- Contact material: Copper alloy
- Performance level: 3
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.77 mm | |
| Pin number | 37 pole | |
| Pole image | standard | |
| Version | socket header | |
| Assembly | straight | |
| Performance level | 3 | |
| Additional parts | equipped | |
| Type of locking | through hole | |
| Contact connection | solder cup | |
| Attachment (rear panel) | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
