09672155615 | Harting
D-Sub plug, 15 pole, standard, equipped, straight, solder pin, 09672155615
Unit Price (€ / pc.)
4.9385 € *
Available: 1,527 pcs.
Total Price:
4.94 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9385 €
10 pcs.
4.5934 €
50 pcs.
4.2245 €
100 pcs.
3.8437 €
*incl. VAT plus shipping costs
Subject to prior sale

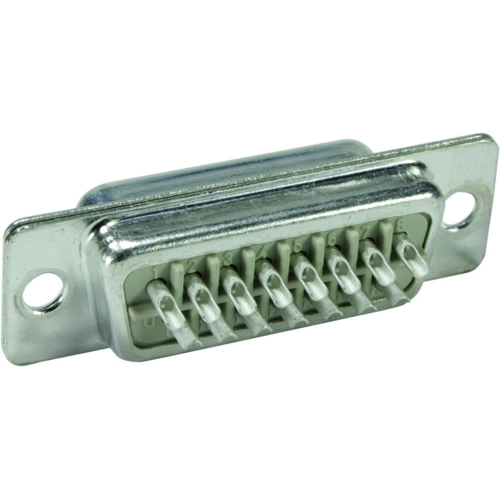

D-Sub plug, 09672155615, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Contact material: Copper alloy
- Shell material: Plated steel
- Performance level: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Performance level | 2 | |
| Type of locking | through hole | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Version | pin header | |
| Contact connection | solder pin | |
| Pin number | 15 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
