09671526801 | Harting

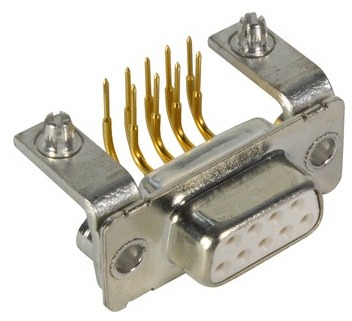

D-Sub socket, 9 pole, standard, angled, solder pin, 09671526801

Order No.: 42P3759
EAN: 5713140220980
MPN:
09671526801
09 67 152 6801
Series: D-Sub
09671526801 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
14.4109 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
14.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
14.4109 €

D-Sub connector, 09671526801, Harting

Connector, wave soldering termination, Rated current: 7.5 A, female, size: D-Sub 1, thermoplastic resin, glass-fibre filled (PBTP), Shell: steel, tin plated, white, Contacts: 9, copper alloy, noble metal over Ni side, Sn over Ni termination side.

Technical specifications
Type of locking threaded insert M3
Pole image standard
Attachment (rear panel) through hole
Assembly angled
Grid 2.74 mm
Contact connection solder pin
Pin number 9 pole
Version socket header
Performance level 2
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
