09670154754 | Harting

D-Sub socket, 15 pole, standard, equipped, straight, solder pin, 09670154754

Order No.: 44F7049
EAN: 4099889800067
MPN:
09670154754
09 67 015 4754
Series: D-Sub
09670154754 Harting D-Sub Connectors

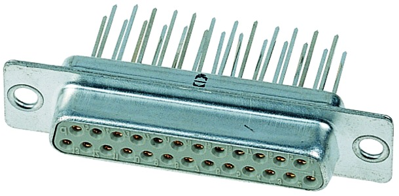

Image may differ
Unit Price (€ / pc.)
5.6168 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
5.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.6168 €

D-Sub socket, 09670154754, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Contact material: Copper alloy
  • Shell material: Plated steel
  • Performance level: 3
Technical specifications
Filter Property Value
Contact connection solder pin
Grid 2.74 mm
Assembly straight
Additional parts equipped
Version socket header
Performance level 3
Pin number 15 pole
Attachment (rear panel) through hole
Type of locking through hole
Pole image standard
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
