09670151715 | Harting

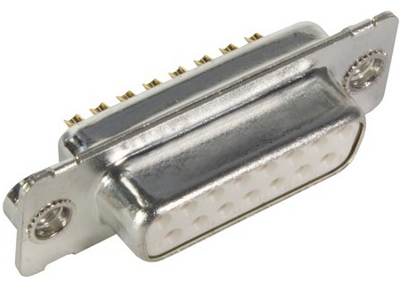

D-Sub socket, 15 pole, standard, straight, solder cup, 09670151715
Unit Price (€ / pc.)
11.4954 € *
Standard delivery time from the manufacturer is: 18 Weeks
D-Sub connector, 09670151715, Harting
Connector, solder cup termination, Rated current: 7.5 A, female, size: D-Sub 2, thermoplastic resin, glass-fibre filled (PBTP), Shell: steel, tin plated, white, Contacts: 15, copper alloy, noble metal over Ni mating side, Sn over Ni termination side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Attachment (rear panel) | through hole | |
| Performance level | 2 | |
| Pole image | standard | |
| Type of locking | threaded insert M3 | |
| Pin number | 15 pole | |
| Contact connection | solder cup | |
| Assembly | straight | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
