09670094715 | Harting
D-Sub socket, 9 pole, standard, equipped, straight, solder cup, 09670094715
Unit Price (€ / pc.)
6.8068 € *
Available: 190 pcs.
Total Price:
6.81 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8068 €
10 pcs.
6.0214 €
100 pcs.
5.2598 €
250 pcs.
5.0575 €
1000 pcs.
4.7362 €
*incl. VAT plus shipping costs
Subject to prior sale

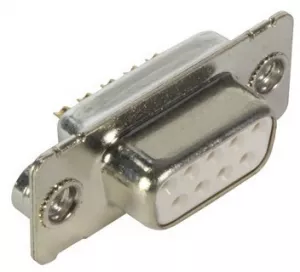

D-Sub socket, 09670094715, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Metal shell: Plated steel
- Contact material: Copper alloy
- Performance level: 2
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | straight | |
| Version | socket header | |
| Pole image | standard | |
| Type of locking | through hole | |
| Contact connection | solder cup | |
| Performance level | 2 | |
| Pin number | 9 pole | |
| Additional parts | equipped | |
| Attachment (rear panel) | through hole | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
