09664516513 | Harting

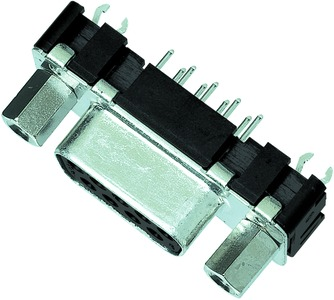

D-Sub socket, 37 pole, standard, equipped, straight, solder pin, 09664516513
Unit Price (€ / pc.)
9.7937 € *
Standard delivery time from the manufacturer is: 9 Weeks
Connector, 09664516513, Harting
Connector, Wave solder termination, Rated current: 6.5A, Socket, Size: D-Sub 4, Thermoplastic molding material, Glass fiber reinforced (PBTP), Steel, Surface treated, Contacts: 37, Copper alloy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pin number | 37 pole | |
| Pole image | standard | |
| Type of locking | threaded bolts 4-40 UNC | |
| Attachment (rear panel) | through hole | |
| Performance level | 2 | |
| Assembly | straight | |
| Contact connection | solder pin | |
| Version | socket header | |
| Grid | 2.76 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
