09664186500 | Harting
D-Sub socket, 37 pole, standard, equipped, straight, IDC connection, 09664186500
Unit Price (€ / pc.)
16.8385 € *
Available: 103 pcs.
Total Price:
16.84 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8385 €
10 pcs.
14.8393 €
50 pcs.
13.8159 €
150 pcs.
13.2090 €
500 pcs.
12.5426 €
*incl. VAT plus shipping costs
Subject to prior sale

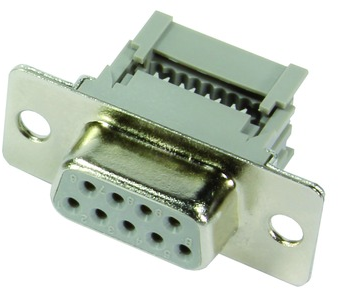

D-Sub socket, 09664186500, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Contact material: Copper alloy
- Shell material: Plated steel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | IDC connection | |
| Performance level | 2 | |
| Assembly | straight | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Grid | 2.77 mm | |
| Pin number | 37 pole | |
| Version | socket header | |
| Type of locking | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
