09664127603 | Harting

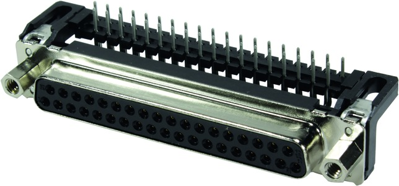

D-Sub socket, 37 pole, standard, equipped, angled, solder pin, 09664127603
Unit Price (€ / pc.)
10.2221 € *
Standard delivery time from the manufacturer is: 7 Weeks
D-Sub socket, 09664127603, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- All-round protective metal shell
- Plated terminations for increased solderability
- Integrated plastic mounting bracket
- Performance level: 3
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Type of locking | threaded bolts 4-40 UNC | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Assembly | angled | |
| Grid | 2.76 mm | |
| Contact connection | solder pin | |
| Pin number | 37 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Performance level | 3 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
