09663216701 | Harting

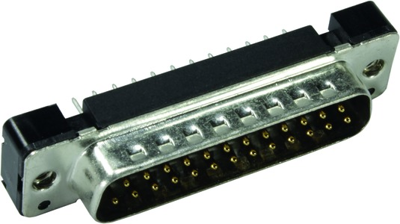

D-Sub plug, 25 pole, standard, equipped, straight, solder pin, 09663216701
Unit Price (€ / pc.)
5.6168 € *
Standard delivery time from the manufacturer is: 13 Weeks
D-Sub plug, 09663216701, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Metal shell: Plated steel
- Contact material: Copper alloy
- Performance level: 2
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder pin | |
| Performance level | 2 | |
| Assembly | straight | |
| Pole image | standard | |
| Additional parts | equipped | |
| Grid | 2.76 mm | |
| Pin number | 25 pole | |
| Version | pin header | |
| Type of locking | threaded insert M3 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
