09662137601 | Harting

D-Sub socket, 15 pole, standard, equipped, angled, solder pin, 09662137601

Order No.: 44F6224
EAN: 4099889795882
MPN:
09662137601
09 66 213 7601
Series: D-Sub
09662137601 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
4.1293 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
4.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.1293 €

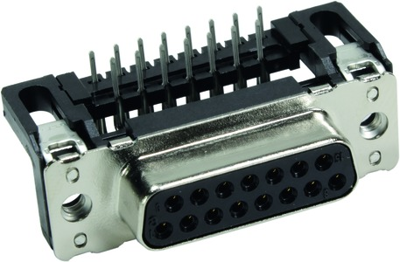

D-Sub socket, 09662137601, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • All-round protective metal shell
  • Plated terminations for increased solderability
  • Integrated plastic mounting bracket
  • Performance level: 3

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Additional parts equipped
Pin number 15 pole
Pole image standard
Type of locking threaded insert M3
Attachment (rear panel) through hole
Performance level 3
Assembly angled
Contact connection solder pin
Version socket header
Grid 2.74 mm
Logistics
Property Value
Country of origin CH
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
