09661186500 | Harting
D-Sub socket, 9 pole, standard, equipped, straight, IDC connection, 09661186500
Unit Price (€ / pc.)
9.4605 € *
Available: 325 pcs.
Next delivery: 1,000 pcs. on 2025-08-11
Total Price:
9.46 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4605 €
10 pcs.
8.3300 €
50 pcs.
7.7588 €
150 pcs.
7.4256 €
500 pcs.
7.0448 €
*incl. VAT plus shipping costs
Subject to prior sale

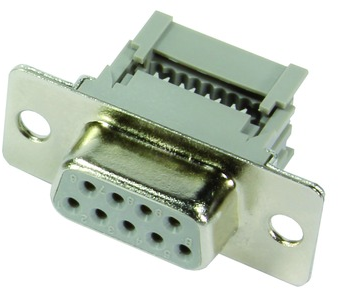

D-Sub socket, 09661186500, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Contact material: Copper alloy
- Shell material: Plated steel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | through hole | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Grid | 2.77 mm | |
| Contact connection | IDC connection | |
| Pin number | 9 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Performance level | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
