09651637813 | Harting

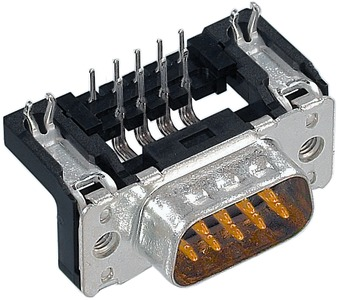

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 09651637813

Order No.: 44F5797
EAN: 4099889792485
MPN:
09651637813
09 65 163 7813
Series: D-Sub
09651637813 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
3.1654 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.1654 €

D-Sub plug, 09651637813, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • High performance
  • Material flammability class acc. to UL 94: V-0
  • Metal shell: Steel
  • Performance level: 3

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Pin number 9 pole
Performance level 3
Attachment (rear panel) through hole
Grid 2.74 mm
Type of locking threaded bolts 4-40 UNC
Version pin header
Pole image standard
Contact connection solder pin
Additional parts equipped
Assembly angled
Logistics
Property Value
Country of origin CH
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
