09651636812 | Harting

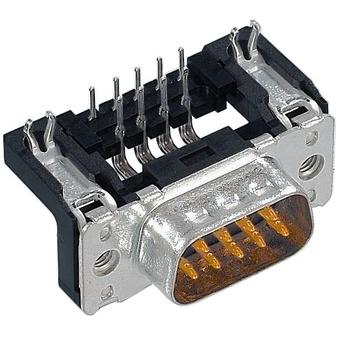

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 09651636812
Unit Price (€ / pc.)
5.3550 € *
Available: 73 pcs.
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3550 €
10 pcs.
4.7243 €
100 pcs.
4.1293 €
250 pcs.
3.9746 €
1000 pcs.
3.7128 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 09651636812, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- All-round protective metal shell
- Plated terminations for increased solderability
- Integrated plastic mounting bracket
- Performance level: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Contact connection | solder pin | |
| Version | pin header | |
| Grid | 2.74 mm | |
| Assembly | angled | |
| Type of locking | threaded insert 4-40 UNC | |
| Pin number | 9 pole | |
| Pole image | standard | |
| Attachment (rear panel) | plastic bracket with PCB locking | |
| Performance level | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
