09651627810 | Harting

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 09651627810

Order No.: 44F5786
EAN: 4099889792379
MPN:
09651627810
09 65 162 7810
Series: D-Sub
09651627810 Harting D-Sub Connectors

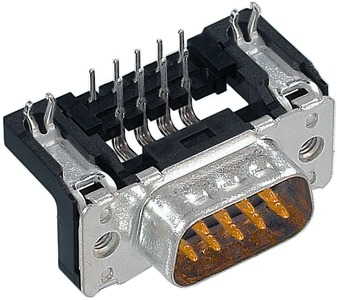

Image may differ
Unit Price (€ / pc.)
2.9274 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.9274 €

D-Sub plug, 09651627810, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • High performance
  • Material flammability class acc. to UL 94: V-0
  • Metal shell: Steel
  • Performance level: 3

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Type of locking through hole
Pole image standard
Attachment (rear panel) through hole
Assembly angled
Grid 2.74 mm
Contact connection solder pin
Pin number 9 pole
Version pin header
Additional parts equipped
Performance level 3
Logistics
Property Value
Country of origin CH
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
