09642217217 | Harting

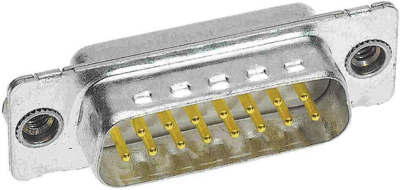

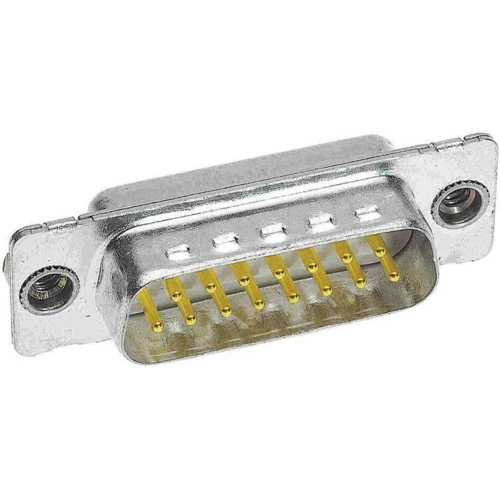

D-Sub plug, 15 pole, equipped, pin header/pin header, straight, solder cup, 09642217217
Unit Price (€ / pc.)
36.1760 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
36.18 € *
Price list
Quantity
Price per unit*
1 pcs.
36.1760 €
5 pcs.
33.6413 €
10 pcs.
31.2851 €
25 pcs.
28.4767 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub connector, 09642217217, Harting
Connector, Solder cup termination, Rated current: 7.5 A, Male, Size: D-Sub 2, Thermoplastic resin (PCT), Plated steel, C-filter 47 pF ±20% @ ≤100 V, Contacts: 15, Copper alloy, Noble metal over Ni.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version (down) | pin header | |
| Assembly | straight | |
| Performance level | 2 | |
| Type of locking | threaded insert 4-40 UNC | |
| Additional parts | equipped | |
| Pin number | 15 pole | |
| Grid | 2.84 mm | |
| Contact connection | solder cup | |
| Verison (up) | pin header | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
