09563004704 | Harting

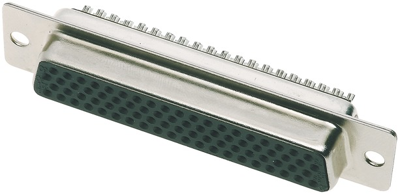

D-Sub socket, 44 pole, high density, equipped, straight, solder pin, 09563004704
Unit Price (€ / pc.)
4.2721 € *
Standard delivery time from the manufacturer is: 6 Weeks
D-Sub socket, 09563004704, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Shell material: Steel, nickel-plated
- Contact material: Copper alloy
- Performance level: 3
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pin number | 44 pole | |
| Pole image | high density | |
| Type of locking | through hole | |
| Attachment (rear panel) | through hole | |
| Performance level | 3 | |
| Assembly | straight | |
| Contact connection | solder pin | |
| Version | socket header | |
| Grid | 2.29 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
