09562005615050 | Harting

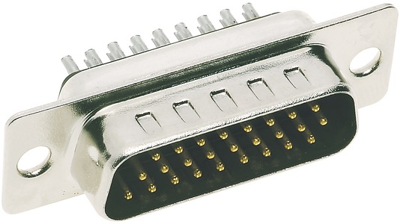

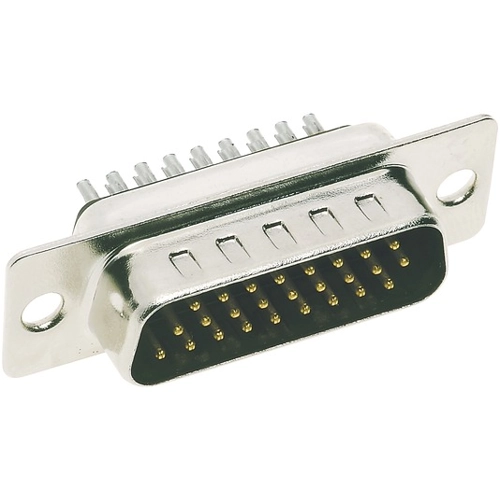

D-Sub plug, 26 pole, high density, equipped, straight, solder pin, 09562005615050

Order No.: 45F1620
EAN: 4099889805239
MPN:
09562005615050
09 56 200 5615 050
Series: D-Sub
09562005615050 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
3.689 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.689 €

D-Sub plug, 09562005615050, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Shell material: Steel, nickel-plated
  • Contact material: Copper alloy

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Pin number 26 pole
Performance level 1
Attachment (rear panel) through hole
Grid 2.29 mm
Type of locking through hole
Version pin header
Pole image high density
Contact connection solder pin
Additional parts equipped
Assembly straight
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
