09561527613 | Harting

D-Sub socket, 15 pole, high density, equipped, straight, solder pin, 09561527613

Order No.: 44F5258
EAN: 4099889788907
MPN:
09561527613
09 56 152 7613
Series: D-Sub
09561527613 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
2.7965 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.7965 €

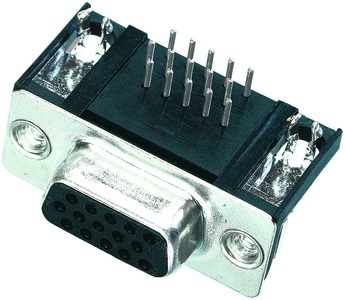

D-Sub socket, 09561527613, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Shell material: Steel, nickel-plated
  • Contact material: Copper alloy
  • Performance level: 3

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Type of locking threaded bolts 4-40 UNC
Pole image high density
Attachment (rear panel) through hole
Assembly straight
Grid 2.29 mm
Contact connection solder pin
Pin number 15 pole
Version socket header
Additional parts equipped
Performance level 3
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
