09554696822741 | Harting

D-Sub plug, 37 pole, standard, equipped, straight, solder pin, 09554696822741

Order No.: 45F1612
EAN: 4099889805154
MPN:
09554696822741
09 55 469 6822 741
Series: D-Sub
09554696822741 Harting D-Sub Connectors

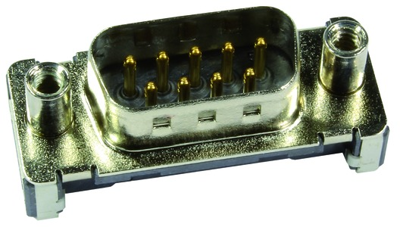

Image may differ
Unit Price (€ / pck.)
668.9704 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
668.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pck.
668.9704 €

D-Sub plug, 09554696822741, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Shell material: Nickel-plated
  • Contact material: Phosphorus bronze
  • Performance level: 2

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Grid 2.76 mm
Pin number 37 pole
Pole image standard
Version pin header
Assembly straight
Performance level 2
Additional parts equipped
Type of locking threaded bolts 4-40 UNC
Contact connection solder pin
Attachment (rear panel) through hole
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
