09554156612741 | Harting

D-Sub socket, 37 pole, standard, equipped, straight, solder pin, 09554156612741

Order No.: 45F6220
EAN: 4099891264765
MPN:
09554156612741
09 55 415 6612 741
Series: D-Sub
09554156612741 Harting D-Sub Connectors

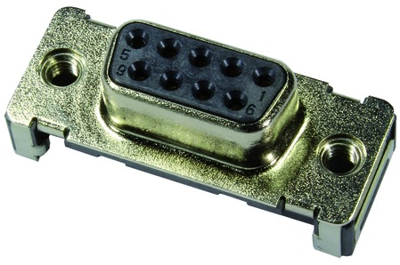

Image may differ
Unit Price (€ / pc.)
6.783 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
6.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.783 €

D-Sub socket, 09554156612741, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Shell material: Nickel-plated
  • Contact material: Phosphorus bronze
  • Performance level: 2

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Grid 2.76 mm
Version socket header
Attachment (rear panel) through hole
Pin number 37 pole
Pole image standard
Additional parts equipped
Contact connection solder pin
Assembly straight
Performance level 2
Type of locking threaded insert 4-40 UNC
Logistics
Property Value
Original Packaging Reel with 140 pieces
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
