09554156612333 | Harting

D-Sub socket, 37 pole, standard, straight, solder pin, 09554156612333

Order No.: 42P3877
EAN: 5713140219540
MPN:
09554156612333
09 55 415 6612 333
Series: D-Sub
09554156612333 Harting D-Sub Connectors

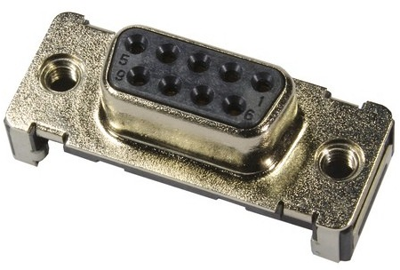

Image may differ
Unit Price (€ / pc.)
12.4831 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
12.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.4831 €

D-Sub connector, 09554156612333, Harting

Connector, Reflow soldering termination (SMT), Rated current: 5 A, female, size: D-Sub 4, Liquid-crystal polymer (LCP), Shell: steel, nickel plated, black, Contacts: 37, copper alloy, noble metal over Ni.

Technical specifications
Filter Property Value
Grid 2.76 mm
Version socket header
Pin number 37 pole
Pole image standard
Contact connection solder pin
Assembly straight
Performance level 2
Type of locking threaded insert 4-40 UNC
Logistics
Property Value
Customs tariff number 85366990
Country of origin VN
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
