09552696822741 | Harting

D-Sub plug, 15 pole, standard, equipped, straight, solder pin, 09552696822741

Order No.: 45F1497
EAN: 4099889804331
MPN:
09552696822741
09 55 269 6822 741
Series: D-Sub
09552696822741 Harting D-Sub Connectors

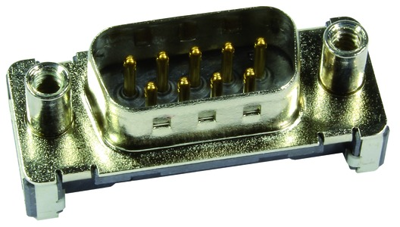

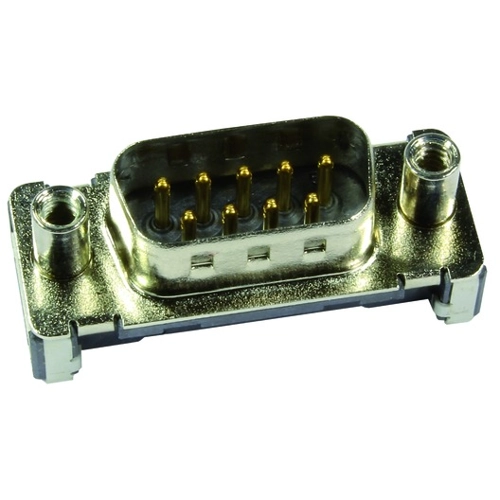

Image may differ
Unit Price (€ / pck.)
476.952 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
476.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pck.
476.952 €

D-Sub plug, 09552696822741, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Shell material: Nickel-plated
  • Contact material: Phosphorus bronze
  • Performance level: 2

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Type of locking threaded bolts 4-40 UNC
Pole image standard
Attachment (rear panel) through hole
Assembly straight
Grid 2.74 mm
Contact connection solder pin
Pin number 15 pole
Version pin header
Additional parts equipped
Performance level 2
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
