09552563620741 | Harting

D-Sub socket, 15 pole, standard, equipped, angled, solder pin, 09552563620741

Order No.: 45F1476
EAN: 4099889804164
MPN:
09552563620741
09 55 256 3620 741
Series: D-Sub
09552563620741 Harting D-Sub Connectors

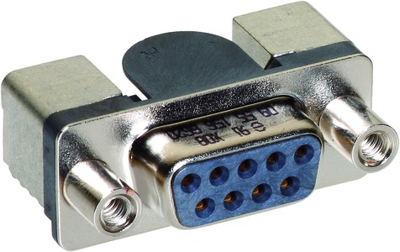

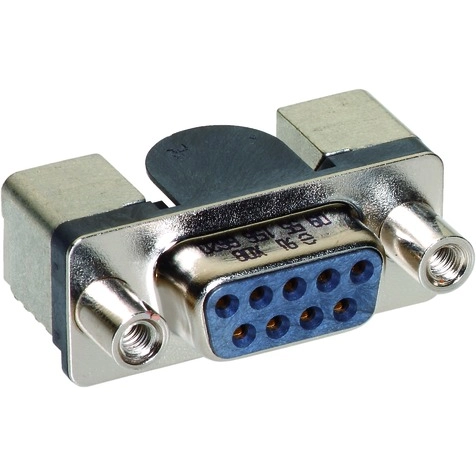

Image may differ
Unit Price (€ / pck.)
702.5641 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
702.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pck.
702.5641 €

D-Sub socket, 09552563620741, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Moisture sensitivity level (MSL): 1
  • Shell material: Steel, nickel-plated
  • Contact material: Copper alloy
  • Performance level: 1

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Pin number 15 pole
Performance level 1
Attachment (rear panel) through hole
Grid 2.76 mm
Type of locking threaded bolts 4-40 UNC
Version socket header
Pole image standard
Contact connection solder pin
Additional parts equipped
Assembly angled
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
