09552296811741 | Harting

D-Sub plug, 15 pole, standard, equipped, straight, solder pin, 09552296811741

Order No.: 45F1455
EAN: 4099889803990
MPN:
09552296811741
09 55 229 6811 741
Series: D-Sub
09552296811741 Harting D-Sub Connectors

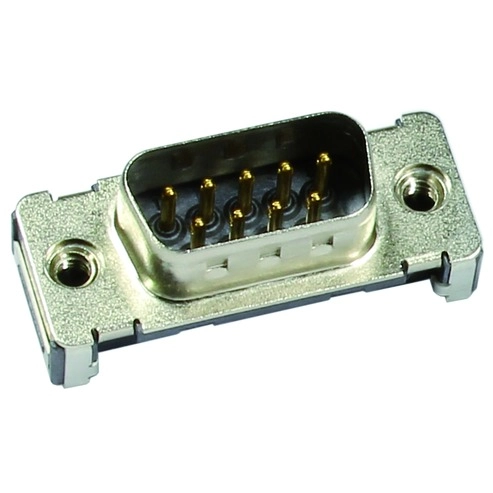

Image may differ
Unit Price (€ / pck.)
565.8093 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
565.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pck.
565.8093 €

D-Sub plug, 09552296811741, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Shell material: Nickel-plated
  • Contact material: Phosphorus bronze
  • Performance level: 2

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Grid 2.74 mm
Pin number 15 pole
Pole image standard
Version pin header
Assembly straight
Performance level 2
Additional parts equipped
Type of locking threaded insert M3
Contact connection solder pin
Attachment (rear panel) through hole
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
