09551663816741 | Harting

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 09551663816741

Order No.: 45F5803
EAN: 4099889805345
MPN:
09551663816741
09 55 166 3816 741
Series: D-Sub
09551663816741 Harting D-Sub Connectors

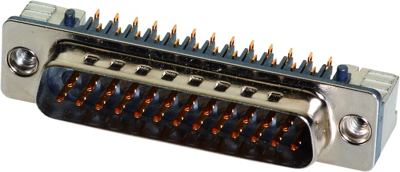

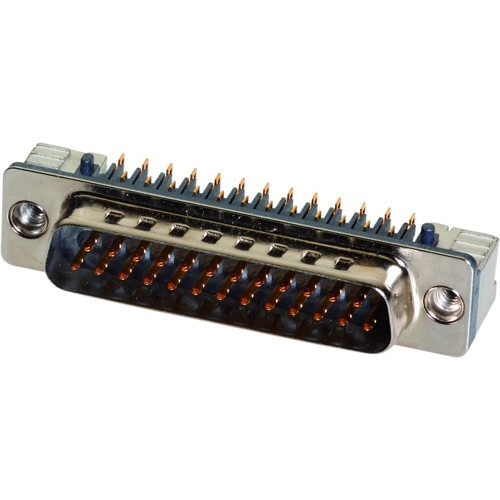

Image may differ
Unit Price (€ / pck.)
521.9459 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
521.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pck.
521.9459 €

D-Sub plug, 09551663816741, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Moisture sensitivity level (MSL): 1
  • Material flammability class acc. to UL 94: V-0
  • Shell material: Steel, nickel-plated
  • Performance level: 1
  • Contact material: Copper alloy

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Pin number 9 pole
Performance level 1
Attachment (rear panel) through hole
Grid 2.76 mm
Type of locking threaded insert 4-40 UNC
Version pin header
Pole image standard
Contact connection solder pin
Additional parts equipped
Assembly angled
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
