09140093151 | Harting

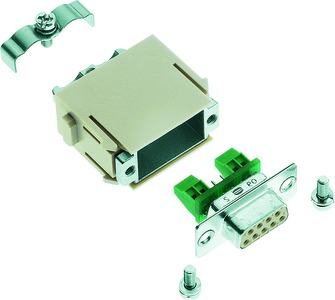

D-Sub socket, 9 pole, standard, equipped, straight, screw connection, 09140093151
Unit Price (€ / pc.)
75.1009 € *
Standard delivery time from the manufacturer is: 11 Weeks
D-Sub socket, 09140093151, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Suitable for the transmission of sensitive signals
- Material flammability class acc. to UL 94: V-0
- Pollution degree: 3
- Contact material: Copper alloy
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pole image | standard | |
| Attachment (rear panel) | metal plate | |
| Assembly | straight | |
| Version | socket header | |
| Contact connection | screw connection | |
| Pin number | 9 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
