09692817420 | Harting

Pin contact, 0.64-2.27 mm², AWG 20-16, solder connection, gold-plated, 09692817420

Order No.: 44F7817
EAN: 4099889659337
MPN:
09692817420
09 69 281 7420
Series: D-Sub
09692817420 Harting Crimp Contacts
Image may differ
Unit Price (€ / pc.)
1.9635 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.9635 €

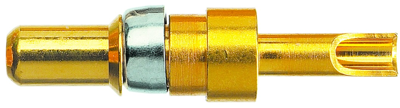

Pin contact, 09692817420, Harting

Solder contact, Straight, Operating current: ≤10 A, Male, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Conductor cross-section: 0.5 - 1 mm², AWG 20 - 16

Technical specifications
Filter Property Value
Contact material copper alloy
Cable cross-section 0.64-2.27 mm²
Version pin contact
AWG cross-section AWG 20-16
contact surface gold-plated
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85365080
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
