09692815823 | Harting

Pin contact, 6.61-16.62 mm², AWG 10-8, solder connection, gold-plated, 09692815823

Order No.: 44F7810
EAN: 4099889659276
MPN:
09692815823
09 69 281 5823
Series: D-Sub
09692815823 Harting Crimp Contacts
Image may differ
Unit Price (€ / pc.)
4.5458 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
4.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.5458 €

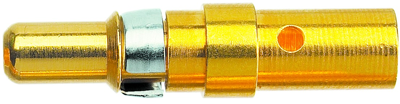

Pin contact, 09692815823, Harting

Solder contact, Straight, Short version, Operating current: ≤40 A, Male, Copper alloy, Noble metal over Ni, Conductor cross-section: 4 - 6 mm², AWG 10 - 8

Technical specifications
Filter Property Value
Contact material copper alloy
Cable cross-section 6.61-16.62 mm²
Version pin contact
AWG cross-section AWG 10-8
Contact surface Connection range gold-plated
contact surface gold-plated
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85365080
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
