09670008178 | Harting

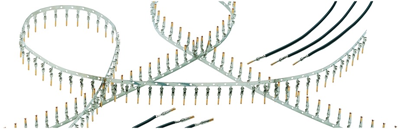

Pin contact, 0.25-0.52 mm², AWG 24-20, crimp connection, nickel-plated, 09670008178
Unit Price (€ / pc.)
0.3570 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3570 €
100 pcs.
0.2868 €
500 pcs.
0.2285 €
1000 pcs.
0.1868 €
3000 pcs.
0.1535 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding crimp contact, type 0967.
Single-contact, turned copper alloy, selective gold-plated; Performance class: 2.
Type: 0008178, male crimp contact, 0.25 - 0.56 mm²
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Insulation diameter | 1.52-2.1 mm | |
| Cable cross-section | 0.25-0.52 mm² | |
| contact surface | nickel-plated | |
| AWG cross-section | AWG 24-20 | |
| Contact surface Connection range | nickel-plated | |
| Version | pin contact | |
| Contact material | bronze | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
