09330006122 | Harting

Pin contact, 0.5 mm², AWG 20, crimp connection, gold-plated, 09330006122

Order No.: 43F110
EAN: 4099889654486
MPN:
09330006122
09 33 000 6122
Series: Han E

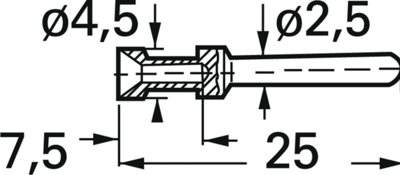

09330006122 Harting Crimp Contacts Image 1
09330006122 Harting Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
2.9274 € *
Available: 25 pcs.
Total Price:
2.93 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9274 €
10 pcs.
2.7013 €
50 pcs.
2.4514 €
100 pcs.
2.2015 €
*incl. VAT plus shipping costs
Subject to prior sale

Crimp contact for contact inserts Han E/ES/A/K/Q 5, type 0933000.

For insertion on the above described contact inserts Han E/ES, Han Hv E and Han A, as well as Power contact for the series Han K and Han Q 5 for crimp terminal.

Male contact, type 0933000.

Technical attributes (type, conductor cross-sections, silver-plated or gold-plated finish): 6122, 0.5 mm², gold–plated

Technical specifications
Filter Property Value
Contact material copper alloy
Cable cross-section 0.5 mm²
Version pin contact
AWG cross-section AWG 20
contact surface gold-plated
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
