09150006201 | Harting

Receptacle, 1.5 mm², AWG 16, crimp connection, silver-plated, 09150006201

Order No.: 43F1426
EAN: 4099889654707
MPN:
09150006201
09 15 000 6201
Series: Han D
09150006201 Harting Crimp Contacts Image 1
09150006201 Harting Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
1.4161 € *
Available: 90 pcs.
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
250 pcs.
1.2257 €
1000 pcs.
1.0710 €
2500 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale

Crimp contact for Han DD/Han D/Han 8 U/Han K/Han Q 7 inserts, type 0915000.

For insertion in the contact inserts for Han D, Han DD and Han 8/U, HAN Q 7, as well as control contact for the Han K series, for crimp terminals.

Female contact, type 0915000.

Technical attributes (type, conductor cross-sections, silver-plated or gold-plated finish): 6201, 1.5 mm², silver–plated

Technical specifications
Filter Property Value

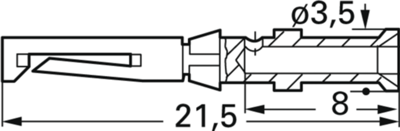

Insulation diameter 3.5 mm
Version receptacle
Contact material copper alloy
Cable cross-section 1.5 mm²
AWG cross-section AWG 16
contact surface silver-plated
Contact connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
