09150006122 | Harting

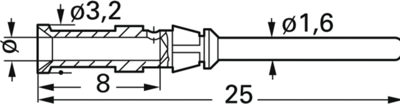

Pin contact, 1.0 mm², AWG 18, crimp connection, gold-plated, 09150006122
Unit Price (€ / pc.)
1.5589 € *
Available: 100 pcs.
Crimp contact for Han DD/Han D/Han 8 U/Han K/Han Q 7 inserts, type 0915000.
For insertion in the contact inserts for Han D, Han DD and Han 8/U, HAN Q 7, as well as control contact for the Han K series, for crimp terminals.
Male contact, type 0915000.
Technical attributes (type, conductor cross-sections, silver-plated or gold-plated finish): 6122, 0.75 to 1 mm², gold–plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 | |
| Contact material | copper alloy | |
| Cable cross-section | 1.0 mm² | |
| Insulation diameter | 3.2 mm | |
| contact surface | gold-plated | |
| Version | pin contact | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
