09060006482 | Harting
Receptacle, 0.5-1.5 mm², AWG 20-16, crimp connection, gold-plated, 09060006482
Unit Price (€ / pc.)
0.2332 € *
Standard delivery time from the manufacturer is: 1 Week

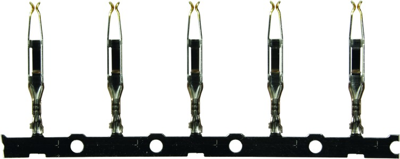

Socket contact, 09060006482, Harting
Crimp contact, Female contact, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Conductor cross-section: 0.5 - 1.5 mm², AWG 20 - 16
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-16 | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Version | receptacle | |
| Contact material | copper alloy | |
| Cable cross-section | 0.5-1.5 mm² | |
| Insulation diameter | 1.6-2.8 mm | |
| Contact surface Connection range | nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 2,500 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
