11056483001 | Harting

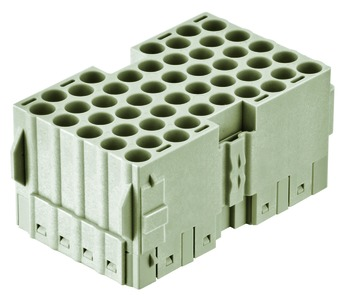

Pin contact insert, Yellock 60, 48 pole, unequipped, crimp connection, 11056483001
Unit Price (€ / pc.)
22.7766 € *
Standard delivery time from the manufacturer is: 8 Weeks
Contact insert, 11 05 648 3001, Harting
Insert, Monoblock, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: Han-Yellock 60, Contacts: 48, Conductor cross-section: 0.14-4 mm²
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: Han-Yellock 60
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 500 V
- PE contact: No
- Colour: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin insert | |
| Pin number | 48 pole | |
| Additional parts | unequipped | |
| Contact connection | crimp connection | |
| PE contact | No | |
| Shell size | Yellock 60 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
