09700202816 | Harting

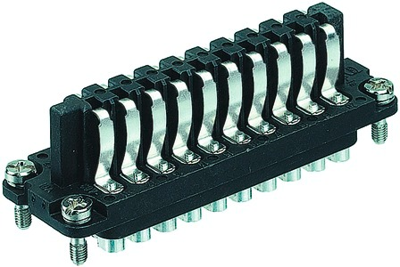

Pin contact insert, 16A, 20 pole, equipped, solder connection, 09700202816
Unit Price (€ / pc.)
19.3732 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
19.37 € *
Price list
Quantity
Price per unit*
1 pcs.
19.3732 €
10 pcs.
18.1594 €
25 pcs.
17.6120 €
50 pcs.
16.3625 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact insert, 09 70 020 2816, Harting
Insert, Solder termination, Male, Polyamide (PA), Black, Rated current: 10 A, Size: 16 A, Contacts: 20, Conductor cross-section: 2.5 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 16A
- min. Operating temperature: -40 °C
- max. Operating temperature: 100 °C
- Rated current: 10 A
- Rated voltage: 25 V
- PE contact: No
- Colour: black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact insert | |
| Shell size | 16A | |
| Additional parts | equipped | |
| Contact connection | solder connection | |
| Pin number | 20 pole | |
| PE contact | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
