09380323001 | Harting

Pin contact insert, 10B, 32 pole, unequipped, crimp connection, with PE contact, 09380323001

Order No.: 44F3583
EAN: 4099889775983
MPN:
09380323001
09 38 032 3001
Series: Han Com
09380323001 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
45.5532 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
45.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
45.5532 €

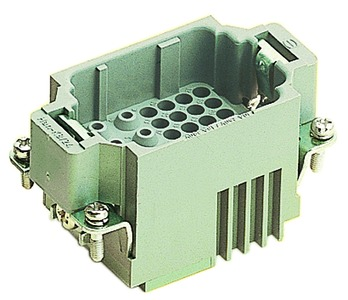

Contact insert, 09 38 032 3001, Harting

Insert, Crimp termination, Male, Polyamide (PA), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 8, + 24 additional signal contacts, Conductor cross-section: 0.5-4 mm², 0.14-2.5 mm² Signal

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Pin number 32 pole
Version pin insert
Additional parts unequipped
Shell size 10B
Contact connection crimp connection
PE contact Yes
Logistics
Property Value
Customs tariff number 85389099
Country of origin RO
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
