09380182601 | Harting

Pin contact insert, 16B, 18 pole, equipped, axial screw connection, with PE contact, 09380182601

Order No.: 44F3579
EAN: 4099889775945
MPN:
09380182601
09 38 018 2601
Series: Han Com

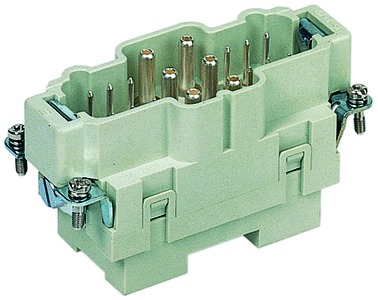

09380182601 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
84.5971 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
84.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
84.5971 €

Contact insert, 09 38 018 2601, Harting

Insert, Axial screw termination / screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 16 B, Contacts: 6, + 12 additional signal contacts, Conductor cross-section: 2.5-8 mm², 0.2-2.5 mm² Signal, Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • Rated voltage: 690 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
PE contact Yes
Contact connection axial screw connection
Shell size 16B
Pin number 18 pole
Version pin insert
Additional parts equipped
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
