09360082632 | Harting

Pin contact insert, 3A, 8 pole, equipped, spring connection, 09360082632

Order No.: 44F3428
EAN: 4099889775600
MPN:
09360082632
09 36 008 2632
Series: Han D
09360082632 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
17.5644 € *
Available: 17 pcs.
Total Price:
17.56 € *
Price list
Quantity
Price per unit*
1 pcs.
17.5644 €
10 pcs.
16.1602 €
50 pcs.
14.6965 €
100 pcs.
13.2328 €
*incl. VAT plus shipping costs
Subject to prior sale

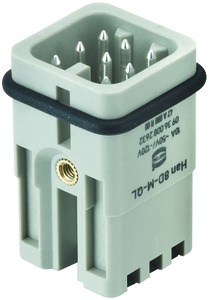

Contact insert, 09 36 008 2632, Harting

Insert, Han-Quick Lock termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 8, Conductor cross-section: 0.25-1.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 3A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 50 V
  • PE contact: No
  • Colour: gray
Technical specifications
Filter Property Value
Pin number 8 pole
Version pin insert
Additional parts equipped
Shell size 3A
Contact connection spring connection
PE contact No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
