09340102602 | Harting

Pin contact insert, 24B, 12 pole, unequipped, crimp connection, with PE contact, 09340102602

Order No.: 44F3303
EAN: 4099889775525
MPN:
09340102602
09 34 010 2602
Series: Han Hv E

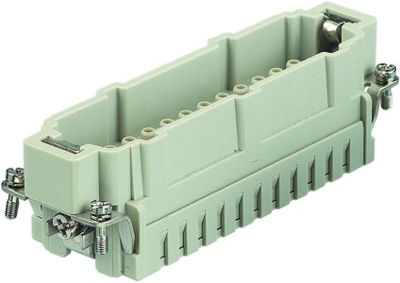

09340102602 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
30.702 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
30.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
30.702 €

Contact insert, 09 34 010 2602, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 24 B, Contacts: 10, + 2 additional relay contacts, Conductor cross-section: 0.5-4 mm²

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 24B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 830 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Version pin insert
Pin number 12 pole
Additional parts unequipped
Contact connection crimp connection
PE contact Yes
Shell size 24B
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
