09340032702 | Harting

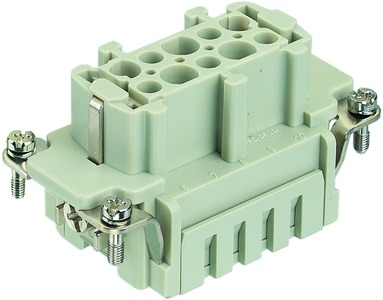

Socket contact insert, 10B, 5 pole, unequipped, crimp connection, with PE contact, 09340032702

Order No.: 44F3271
EAN: 4099889775464
MPN:
09340032702
09 34 003 2702
Series: Han Hv E
09340032702 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
20.587 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
20.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
20.587 €

Contact insert, 09 34 003 2702, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 3, + 2 additional relay contacts, Conductor cross-section: 0.5-4 mm²

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 830 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Version socket insert
Pin number 5 pole
Additional parts unequipped
Contact connection crimp connection
PE contact Yes
Shell size 10B
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
