09338162604 | Harting

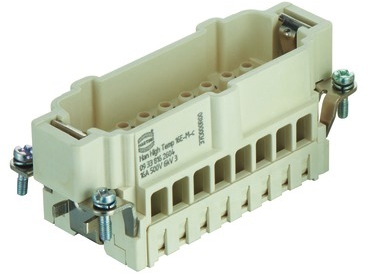

Pin contact insert, 16B, 16 pole, unequipped, crimp connection, with PE contact, 09338162604

Order No.: 44F3244
EAN: 4099889775358
MPN:
09338162604
09 33 816 2604
Series: Han E
09338162604 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
36.7472 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
36.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
36.7472 €

Contact insert, 09 33 816 2604, Harting

Insert, Crimp termination, Male, Liquid crystal polymer (LCP), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 0.5-2.5 mm²

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 200 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
Technical specifications
PE contact Yes
Contact connection crimp connection
Shell size 16B
Pin number 16 pole
Version pin insert
Additional parts unequipped
Logistics
Country of origin RO
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
