09332242602 | Harting

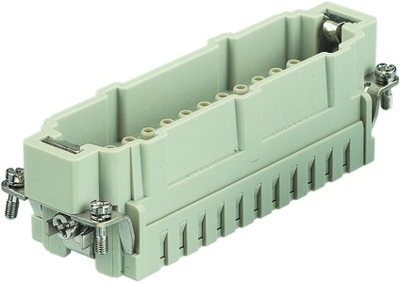

Pin contact insert, 24B, 24 pole, unequipped, crimp connection, with PE contact, 09332242602
Unit Price (€ / pc.)
26.9535 € *
Available: 1 pcs.
Total Price:
26.95 € *
Price list
Quantity
Price per unit*
1 pcs.
26.9535 €
5 pcs.
25.7278 €
10 pcs.
24.9781 €
25 pcs.
23.2645 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact insert, 09 33 224 2602, Harting
Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14-4 mm²
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 24B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 500 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact insert | |
| Shell size | 24B | |
| Additional parts | unequipped | |
| Contact connection | crimp connection | |
| Pin number | 24 pole | |
| PE contact | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
