09332162748 | Harting

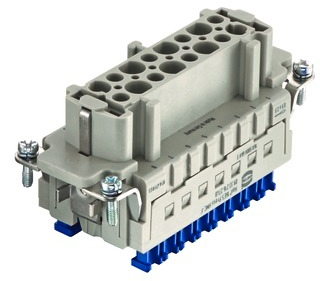

Socket contact insert, 16B, 16 pole, equipped, cage clamp terminal, with PE contact, 09332162748

Order No.: 45F5783
EAN: 4099889776430
MPN:
09332162748
09 33 216 2748
Series: Han ES Press
09332162748 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
89.6784 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
89.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
89.6784 €

Contact insert, 09 33 216 2748, Harting

Insert, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 0.14-2.5 mm², Copper alloy, HMC gold plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Version socket insert
Pin number 16 pole
Additional parts equipped
Contact connection cage clamp terminal
PE contact Yes
Shell size 16B
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
