09330244736 | Harting

Socket contact insert, 24B, 24 pole, equipped, screw connection, with PE contact, 09330244736

Order No.: 44F3194
EAN: 4099889775167
MPN:
09330244736
09 33 024 4736
Series: Han E AV
09330244736 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
69.1866 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
69.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
69.1866 €

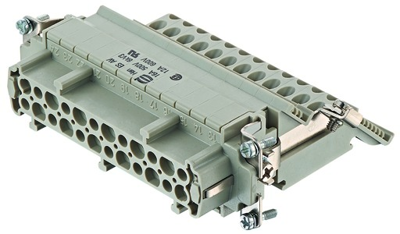

Contact insert, 09 33 024 4736, Harting

Insert, Terminal block connector, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 24B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
PE contact Yes
Contact connection screw connection
Shell size 24B
Pin number 24 pole
Version socket insert
Additional parts equipped
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
