09330242788 | Harting

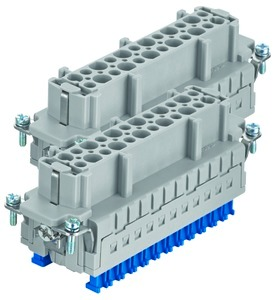

Socket contact insert, 48B, 48 pole, equipped, cage clamp terminal, with PE contact, 09330242788

Order No.: 44F3182
EAN: 4099889775051
MPN:
09330242788
09 33 024 2788
Series: Han ES Press
09330242788 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
22.253 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
22.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
22.253 €

Contact insert, 09 33 024 2788, Harting

Insert, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 48 B, Contacts: 48, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 48B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
PE contact Yes
Contact connection cage clamp terminal
Shell size 48B
Pin number 48 pole
Version socket insert
Additional parts equipped
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
