09330242626 | Harting

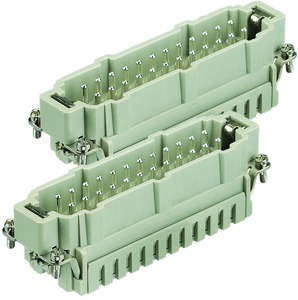

Pin contact insert, 48B, 48 pole, equipped, cage clamp terminal, with PE contact, 09330242626
Unit Price (€ / pc.)
25.7873 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Contact insert, 09 33 024 2626, Harting
Insert, Cage-clamp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 48 B, Contacts: 48, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 48B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 500 V
- PE contact: Yes
- Colour: gray
Technical specifications
| PE contact | Yes | |
| Contact connection | cage clamp terminal | |
| Shell size | 48B | |
| Pin number | 48 pole | |
| Version | pin insert | |
| Additional parts | equipped |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| RoHS conform | Yes |
