09330164639 | Harting

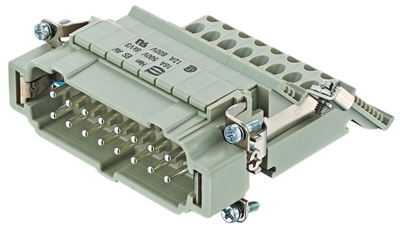

Pin contact insert, 16B, 16 pole, equipped, cage clamp terminal, with PE contact, 09330164639

Order No.: 44F3136
EAN: 4099889774795
MPN:
09330164639
09 33 016 4639
Series: Han ES
09330164639 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
46.3148 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
46.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
46.3148 €

Contact insert, 09 33 016 4639, Harting

Insert, Terminal block connector, Cage-clamp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Version pin insert
Pin number 16 pole
Additional parts equipped
Contact connection cage clamp terminal
PE contact Yes
Shell size 16B
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
