09330162691 | Harting

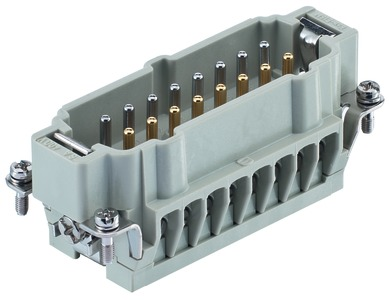

Pin contact insert, 16B, 16 pole, equipped, screw connection, with PE contact, 09330162691
Unit Price (€ / pc.)
129.7933 € *
Standard delivery time from the manufacturer is: 10 Weeks
Contact insert, 09 33 016 2691, Harting
Insert, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 1-2.5 mm²
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 16B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 400 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin insert | |
| Pin number | 16 pole | |
| Additional parts | equipped | |
| Contact connection | screw connection | |
| PE contact | Yes | |
| Shell size | 16B |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
