09330104735 | Harting

Socket contact insert, 10B, 10 pole, equipped, screw connection, with PE contact, 09330104735

Order No.: 44F3101
EAN: 4099889774566
MPN:
09330104735
09 33 010 4735
Series: Han E AV

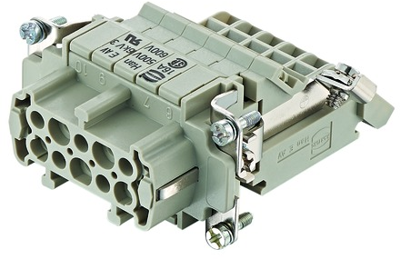

09330104735 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
64.2362 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
64.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
64.2362 €

Contact insert, 09 33 010 4735, Harting

Insert, Terminal block connector, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
PE contact Yes
Contact connection screw connection
Shell size 10B
Pin number 10 pole
Version socket insert
Additional parts equipped
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
